As solar energy continues to expand globally, the efficiency and maintenance of large-scale solar farms have become critical factors in maximizing power output. Dust, dirt, and environmental debris accumulating on photovoltaic (PV) panels can reduce energy production by up to 30%, posing a significant challenge for operators. Traditional manual cleaning methods are labor-intensive, time-consuming, and often unable to maintain consistent panel performance. In this context, PV Railed Cleaning Robots have emerged as a vital solution, automating the cleaning process, improving energy yield, and reducing operational costs across solar installations.
1. What is a PV Railed Cleaning Robot?
A PV Railed Cleaning Robot is an automated cleaning solution specifically designed for solar photovoltaic (PV) installations. These robots move along rails installed on solar panel arrays, efficiently removing dust, dirt, and debris that accumulate on panel surfaces. By keeping the panels clean, they help maintain optimal energy output and extend the lifespan of the solar installation.
2. How Does a PV Railed Cleaning Robot Work?
Equipped with electric drive systems, smart navigation, and advanced sensors, PV railed cleaning robots can automatically detect panel positions and cleaning requirements. The robot moves along predefined rail paths, using brushes, water jets, or dry cleaning methods to clean each panel surface. Intelligent algorithms allow the robot to adjust pressure, speed, and cleaning patterns according to panel orientation, environmental conditions, and accumulated debris levels.
3. Advantages of Using a PV Railed Cleaning Robot
The adoption of PV railed cleaning robots offers multiple benefits for solar power operators:
● Enhanced Energy Efficiency: Regular cleaning removes dust and dirt that can reduce light absorption, boosting solar panel output.
● Water-Saving Technology: Many models utilize dry or low-water cleaning systems, ideal for arid regions with limited water supply.
● Reduced Labor Costs: Automated cleaning minimizes the need for manual intervention, lowering operational expenses.
● Adaptability to Complex Installations: Smart obstacle avoidance and flexible movement allow robots to operate efficiently in complex PV arrays.
4. Maintenance Requirements for PV Railed Cleaning Robots
Although PV cleaning robots are designed for continuous operation, routine maintenance is essential for sustained performance. Operators should regularly inspect battery levels, clean sensors, and check brush wear. Proper maintenance ensures reliable operation, prevents damage to panels, and prolongs the robot’s service life.

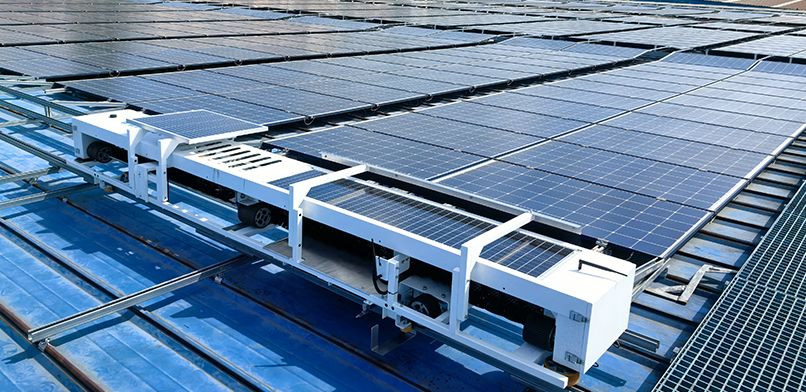

5. TrinaBot's PV Railed Cleaning Robot: A Step Ahead in Solar Maintenance
TrinaBot's PV Railed Cleaning Robot stands out in the industry due to its innovative design and advanced features. Tailored for photovoltaic plants ranging from a few hundred kW to MW scale, this robot offers assured improvements in solar panel power production through a modular design that accommodates various cleaning widths tailored to specific field layouts.
Parameters
| Specification | Aurora1P | Aurora2P |
| Size | W450H350(L≤3000) | (L≤6000) |
| Weight | 38–45 kg | 55–65 kg |
| Speed | 18–20 m/min | 18–20 m/min |
| Tilt Angle | ±60° | ±60° |
| Obstacle Clearance | 50 mm | 50 mm |
| Cleaning Range | ≥4000 mm | ≥2000 mm |
| Climbing Ability | 25° Max | 25° Max |
| Operating Temp | -30°C to +60°C | -30°C to +60°C |
| Communication | LoRa/4G | LoRa/4G |
| Protection | IP65, C4+ | IP65, C4+ |
Key features:
● Lightweight Construction: The main structure is made from aluminum profiles, reducing the robot's weight.
● Windproof Design: The docking station supports mechanically windproof operations, capable of resisting wind speeds up to 55 m/s, and supports emergency stopping during operation.
● Advanced Brush Technology: The brush filament is made of UV-modified PBT, ensuring a degradation rate of modules caused by robots of less than 1% after 20,000 cleaning cycles.
● Smart Obstacle Crossing and Active Posture Adjustment: Equipped with intelligent obstacle-crossing and proactive posture adjustment functions, adapting to complex environments and preventing the robot from getting stuck.
Project Case
Enhance the efficiency and longevity of your solar installations with TrinaBot's PV Railed Cleaning Robot. If you need further customization or additional information, feel free to ask!
