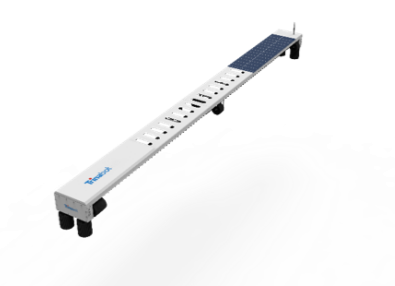

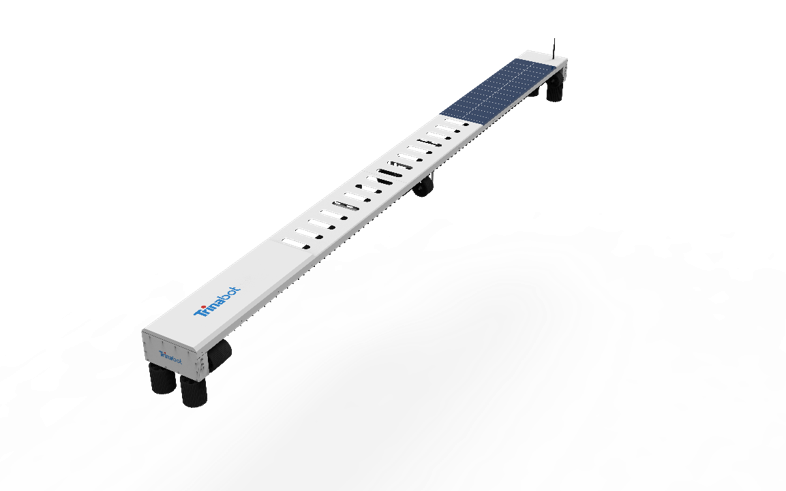

"Aurora" PV Railed Cleaning Robot
Core technology：
Solar power generation is significantly impacted by soiling and dust, with research indicating that more than 30% of power can be lost if PV panels are not cleaned regularly. The Solar Panel Railed Cleaning Robot from Trinabot ensures optimal performance by maintaining clean panels, enabling higher energy production at lower operating costs. This innovative solution delivers maximum ROI for PV plant owners.
The Solar Module Cleaning Robot stands out with its unique benefits:
Cost-effective and efficient cleaning.
Maintenance-friendly design suited for on-field operations.
Higher energy output through regular cleaning.
Our Solar Panel Railed Cleaning Robot is designed for PV plants ranging from a few hundred kW to MW scale. It provides assured improvements in solar panel power production through a modular design that accommodates various cleaning widths tailored to specific field layouts. Key features include:
Lightweight Construction: The main structure is made from aluminum profiles, reducing the robot's weight.
Solar Power System: Self-charging with a built-in solar power system for convenience and efficiency.
Waterless Cleaning: Dry cleaning using a special soft, non-abrasive brush ensures effective cleaning without water.
High Torque Motors: Driven by powerful DC motors for reliable operation.

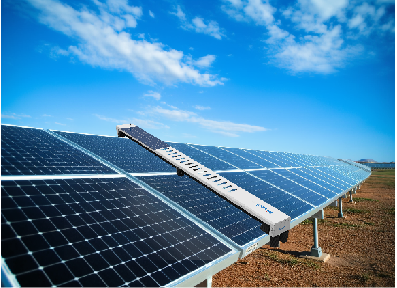

The Solar Panel Railed Cleaning Robot offers fully automatic operation on PV frames or special rails fitted on both sides of the panels. Its features include:
Automatic start and stop functions with automatic return capabilities.
Scheduled cleaning options for consistent maintenance.
Edge sensing technology to prevent sliding down, ensuring safety.
Intelligent PLC-based control system for seamless operation.
Emergency stop button for added safety.
Trinabot's Solar Panel Railed Cleaning Robot sets new standards in solar maintenance, ensuring that PV panels deliver optimal power daily. With its intelligent features and robust design, this Solar Panel Railed Cleaning Robot guarantees efficiency, safety, and reliability, maximizing returns for solar plant owners. Contact us to learn more about our precision solar rail cleaning robot.
Product advantages
Intelligent Algorithm for Auto-Correction
Height Tolerance: 50 mm Longitudinal Deviation: 50 mm
Modular O&M
The modular design allows for flexible maintenance and upgrades, making it adaptable to diverse PV plant conditions and operational needs.
Autonomous Cleaning Decision-Making
Independently perceives environmental data and cleaning requirements, automatically planning and adjusting cleaning strategies.
OTA Remote Differential Upgrades
Reduces upgrade time and storage pressure, completing a full-site upgrade in just 15 minutes.
Fast Deployment
Self-powered by the module, no need to deploy charging cables
Environmental Perception
Automatic cleaning task based on the meteorological perception function
Intelligent Control
Intelligent posture correction, intelligent obstacle avoidance, and edge drop-off detection
High Reliability
Adopt highly durable brushless motor and high-cycle LFP battery
Safety Protection
With anti-stuck, anti-drop protection and strong UV resistance
Efficient O&M

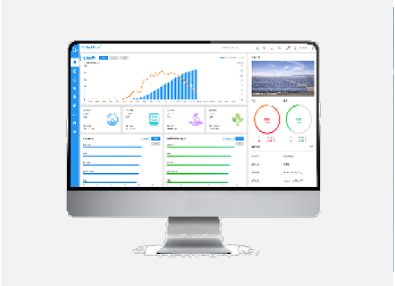

O&M cloud + App system, intelligent remote O&M
Product parameters
| Specification | Aurora1P | Aurora2P |
| Size | W450H350(L≤3000) | (L≤6000) |
| Weight | 38–45 kg | 55–65 kg |
| Speed | 18–20 m/min | 18–20 m/min |
| Tilt Angle | ±60° | ±60° |
| Obstacle Clearance | 50 mm | 50 mm |
| Cleaning Range | ≥4000 mm | ≥2000 mm |
| Climbing Ability | 25° Max | 25° Max |
| Operating Temp | -30°C to +60°C | -30°C to +60°C |
| Communication | LoRa/4G | LoRa/4G |
| Protection | IP65, C4+ | IP65, C4+ |
IP65, C4+ anti-corrosion protection
Operating temperature: -30°C to +60°C
Strong wind protection
Resistance to wind and sand
Multi-motor collaborative walking
Automatic deflection correction
Intelligent uneven panel crossing
Intelligent power management
Posture perception
Temperature and humidity acquisition
Mileage perception
In-place perception
Abnormal alarm
Long-distance centralized communication
OTA upgrade
SCADA customized monitor
100,000-level device cloud access
Designed to meet the demanding requirements of utility-scale and commercial PV installations, the Aurora Railed Cleaning Robot by Trinabot delivers precision, durability, and intelligence in every cleaning cycle. With robust IP65 and C4+ protection, it withstands harsh environments—ranging from sandstorms to sub-zero temperatures. Equipped with advanced multi-motor coordination, real-time deflection correction, and intelligent panel-crossing capability, Aurora ensures consistent cleaning across varied terrain and panel arrangements.
The built-in environmental perception system monitors posture, mileage, and weather conditions, while the integrated IOT + Maintenance Cloud enables long-range monitoring, OTA updates, and SCADA-based control. With a climbing ability of up to 25° and obstacle clearance of 50mm, Aurora adapts seamlessly to installation slopes and panel gaps. Models like Aurora1P and Aurora2P offer flexibility in weight, size, and cleaning range to suit different site requirements.
Whether you're operating in high-dust zones or extreme climates, Aurora maximizes energy yield while reducing manual labor and operational costs.
